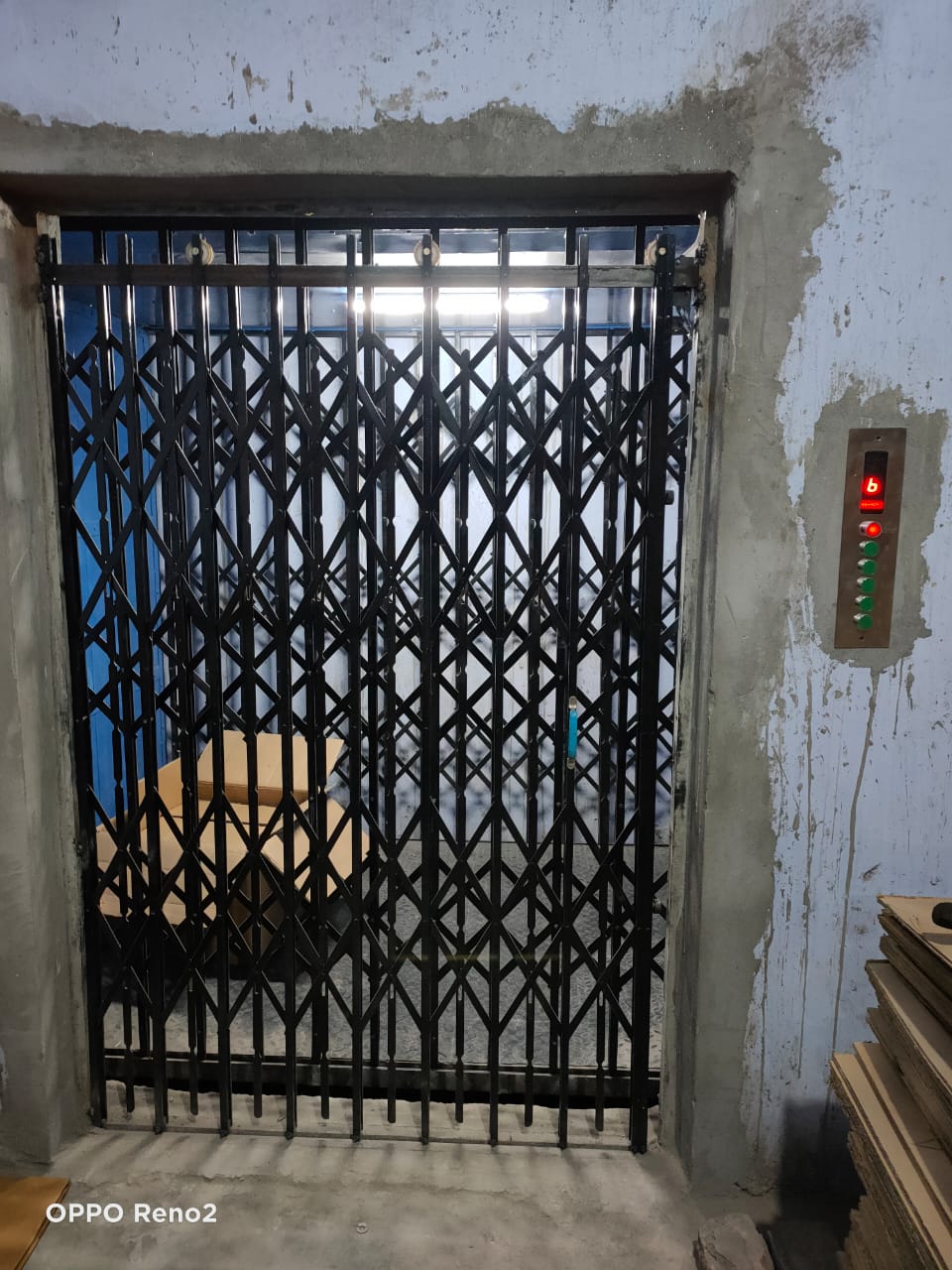

Dumbwaiter Lift

Dumbwaiter Lift

Dumbwaiter Lift

A dumbwaiter is a small freight lift designed to transport food or small goods between floors efficiently. Commonly used in restaurants, schools, hospitals, and homes, dumbwaiters ensure smooth and hygienic delivery of meals or supplies. Built for reliability, these systems are compact, efficient, and easy to install.

Each dumbwaiter is constructed using high-quality materials such as powder-coated steel or stainless steel, with multiple door configurations including bi-parting, swing, or slide-up types. Available in two standard sizes, with custom options to suit your space and capacity needs.

Technical Specifications

Capacity (Kg) Gear Box (mm) Gear Box Type Motor (H.P.) Brake Type Brake (Inches) Rope (mm)
25080Worm2 HPDC906
500100Worm3 HPDC1108
1000120Worm5 HPShoe5.512
1500135Worm5 HPShoe5.513
2000155Worm7.5 HPShoe714
2500300Helical7.5 HPShoe716
3000350Helical10 HPShoe-Double7-5.516
5000500Helical15 HPShoe-Double7-718
