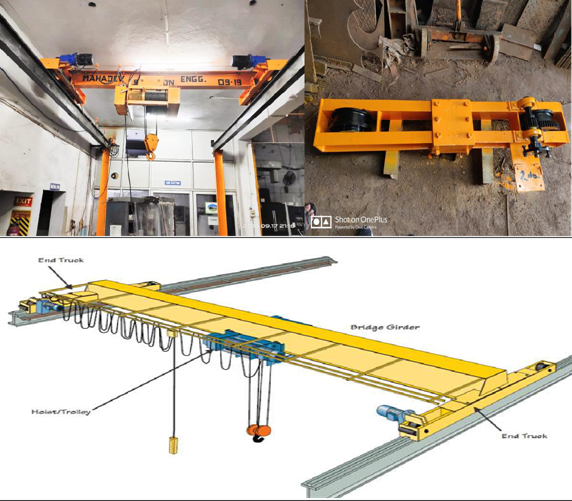

SINGLE GIRDER E.O.T. CRANE — Moderate capacity workshop cranes (up to 20 Tonnes)

These are moderate capacity workshop cranes manufactured for a capacity up to 20 Tonnes. These type of cranes are normally operated from floor through pendent. This is also suitable where head room (bracket top to ceiling) is less.

Capacity up to 20 Tonnes

Designed for workshops • Pendant operation • Low headroom solutions

ApplicationWorkshop & industrial lifting

OperationPendant (floor operated)

Max Capacity20 Tonnes

AdvantageLow headroom — compact design

Capacity (Tonnes)	Span (mm)	Head Room (mm)	End Clearance (mm) - A1/A2	Hook Approach L1/L2 (mm)	Wheel Base (mm)	Wheel Load (tonnes)	Approx Weight (tonnes)
1	5000	700	220	750	200	0.85	1.4
1	10000	800	220	750	250	1.05	2.1
1	15000	850	220	750	300	1.30	3.1
2	5000	800	250	750	200	1.50	1.71
2	10000	900	250	750	250	1.65	2.2
2	15000	1000	250	750	300	1.95	3.4
2	20000	1200	250	750	400	2.35	5.0
3	5000	800	250	850	200	2.10	2.2
3	10000	900	250	850	250	2.25	2.7
3	15000	1000	250	850	300	2.65	4.3
3	20000	1250	250	850	400	3.25	6.7
5	10000	950	250	950	250	3.45	3.3
5	15000	1200	250	950	300	4.10	6.0
5	20000	1300	250	950	400	4.50	7.6
7.5	10000	1000	250	1000	250	5.00	4.5
7.5	15000	1250	250	1000	300	5.50	6.6
7.5	20000	1400	250	1000	400	6.00	8.5
10	10000	1100	250	1100	250	6.55	5.2
10	15000	1350	250	1100	300	7.15	7.6
10	20000	1500	250	1100	400	7.70	9.8
20	10000	1200	250	1100	250	9.50	6.8
20	15000	1500	250	1100	300	10.00	9.7
20	20000	1600	250	1100	400	10.80	12.5

SINGLE GIRDER E.O.T. CRANE
